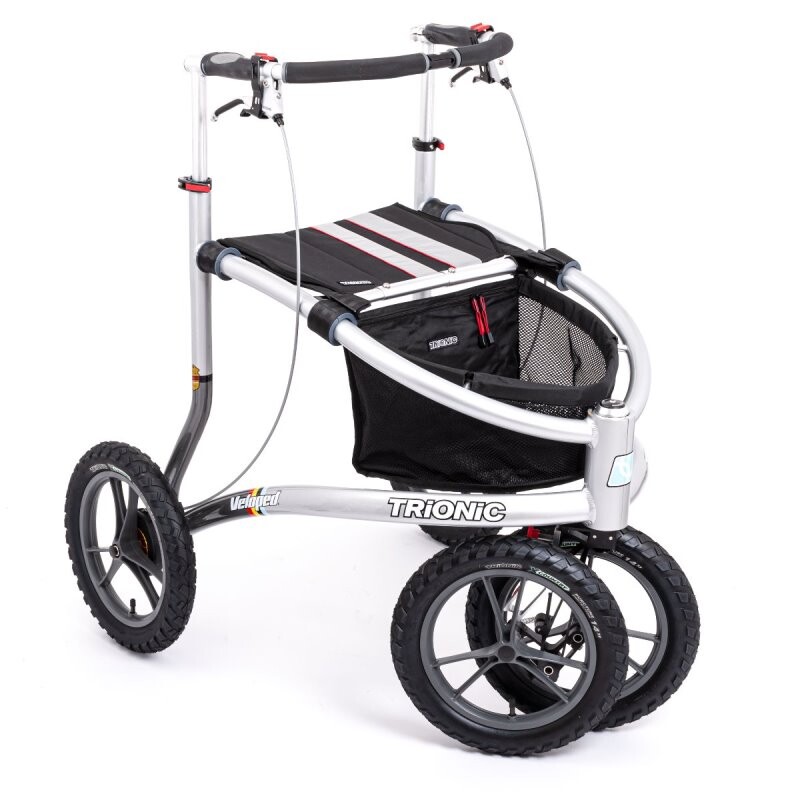

Veloped Tour 14er L black/reflex/red
14"/36 cm wheels • Size L • Grip height 84-104 cm • Body height 185-210 cm • Air-pressured tires • Comfort seat, basket & rain cover
Description
Veloped Tour 14er size L
With the Veloped Tour, you will enjoy daily comfort and practicality. It is very well suited for taking a stroll in the park, for going shopping and for everyday activities. The roomy basket loads your groceries from the supermarket, and bringing them home is a joy with all the benefits of the climbing wheel and the air-filled tyres.
NEW MODEL: The new Veloped Tour 14er L is 1.2 kg (2.6 lbs) lighter than the previous model.
To provide optimal seating comfort, the seat depth has been increased to 30 cm.
The Veloped Tour is tested and fully approved according to the European standard for rollators/walkers (ISO-11199). It also has a CE mark.
Technical Data
| Dimensions & Weight | |
| Frame size | L |
| Grip height (adjustable) | 84 - 104 cm |
| Recommended body height | 185 - 210 cm |
| Length | 107 cm |
| Width | 79 cm |
| Grip width (centre-centre) | 48 cm |
| Seat height | 65 cm |
| Seat width | 44 cm |
| Seat depth | 30 cm |
| Dimensions folded | |
| Height | 84 cm |
| Length | 111 cm |
| Width | 42 cm |
| Transport dimensions – folded without wheels | |
| Height | 68 cm |
| Length | 84 cm |
| Width | 42 cm |
| Transport weight – without wheels | |
| Transport weight | 8.0 kg |
| User weight | |
|---|---|
| Max user weight | 150 kg |
| Product weight | |
| Total weight | 12.7 kg |
| Textile Parts – Seat & Basket | |
| Seat base | 600D polyester, water-repellent w. PU-cover on the reverse side |
| Seat cover | 600D polyester, water-repellent w. PU-cover on the reverse side |
| Basket | 600D polyester, water-repellent w. PU-cover on the reverse side |
| Reflectors | 3 frame- & 2 grip reflectors |
| Wheels | |
| Wheel size | 14" / 36 cm |
| Tyre type | Air-pressured / Tyre + inner tube |
| Tyres | Trionic X-Country w. puncture protection |
| Inner tubes | Butyl rubber w. Schraeder/car valve |
| Tyre dimension inch | 14 x 2.2" |
| Tyre dimension mm | 357-60 (outer diameter-width) |
| Wheel rim | PA6+15%GF Injection-molded rim w. 3x2 spokes made from glass fibre reinforced high-grade nylon plastic |
| Ball bearings | 61901-2RS1 / 61802-2RS1 |
| Tire options | • Schwalbe Big Apple |
| Frame & Fork suspension | |
| Frame | 6061-T6 aluminium, made from hydro-formed, TIG-welded and T6 heat-treated aluminium tubes (no plastic parts) |
| Fork suspension | Trionic Climbing Wheel – Patented. Made from extruded 6061-T6 aluminium parts |
| Headset | Trionic system w. 2 ball bearings |
| Brakes | |
| Brakes | Trionic All-Terrain hub brakes |
| Brake levers | Trionic all-aluminium brake levers w. Kraton rubber finger surface |
| Brake functions | Motion & Parking brake |
| Grip bar & Grips | |
| Grip bar | 6061-T6 aluminium (no plastic parts) |
| Grips | Ergon GP1 grips size L 8.5-12 Ergonomic & adjustable (angle) |
| Grip options (upgrade) | • Ergon GP1 size S 6.5-8.5 • Ergon GP1 BioKork size S 6.5-8.5 • Ergon GP1 BioKork size L 8.5-12 |
