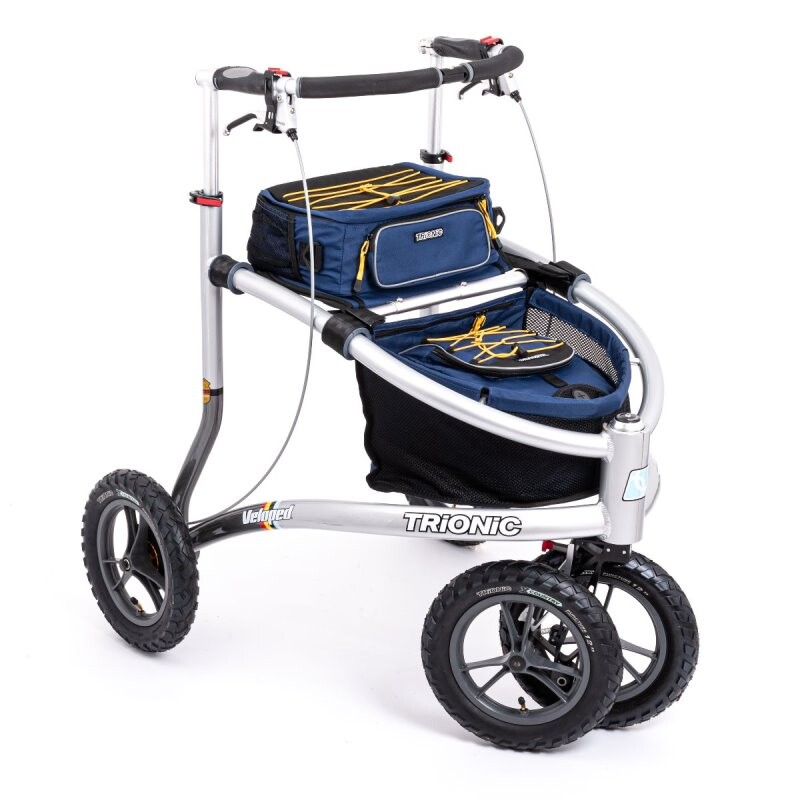

Veloped Trek 12er L navy/black/yellow
12"/31 cm wheels • Size L • Grip height 82-102 cm • Body height 185-205 cm • Air-pressured tyres • Seat, basket, backpack & seat bag
Description
Veloped Trek 12er size L
The Veloped Trek is your ideal companion for hiking and exploring our great outdoors.
Load up your Veloped Trek and head for exciting adventures. It offers a multitude of options to carry all your gear when you are heading out to explore the world. With its versatile seat bag and backpack, the Veloped Trek is your perfect companion for hiking, camping and travelling.
NEW MODEL: The new Veloped Trek 12er L is 1.0 kg (2.2 lbs) lighter than the previous model.
The Veloped Trek is tested and fully approved according to the European standard for rollators/walkers (ISO-11199). It also has a CE mark.
Technical Data
| Dimensions & Weight | |
| Frame size | L |
| Grip height (adjustable) | 82 - 102 cm |
| Recommended body height | 185 - 205 cm |
| Length | 102 cm |
| Width | 79 cm |
| Grip width (centre-centre) | 48 cm |
| Seat height | 63 cm |
| Seat width | 44 cm |
| Seat depth | 25 cm |
| Dimensions folded | |
| Height | 82 cm |
| Length | 106 cm |
| Width | 42 cm |
| Transport dimensions – folded without wheels & bags | |
|---|---|
| Height | 68 cm |
| Length | 84 cm |
| Width | 42 cm |
| Transport weight – without wheels & bags | |
| Transport weight | 8.0 kg |
| User weight | |
| Max user weight | 150 kg |
| Product weight | |
| Total weight | 13.1 kg |
| Textile Parts – Seat, Basket, Backpack & Seat Bag | |
| Seat base | 600D polyester, water-repellent w. PU-cover on the reverse side |
| Seat cover | 600D polyester, water-repellent w. PU-cover on the reverse side |
| Basket | 600D polyester, water-repellent w. PU-cover on the reverse side |
| Backpack | 600D polyester, water-repellent w. PU-cover on the reverse side |
| Seat bag | 600D polyester, water-repellent w. PU-cover on the reverse side |
| Reflectors | 3 frame- & 2 grip reflectors |
| Wheels | |
| Wheel size | 12" / 31 cm |
| Tyre type | Air-pressured / Tyre + inner tube |
| Tyres | Trionic X-Country w. puncture protection |
| Inner tubes | Butyl rubber w. Schraeder/car valve |
| Tyre dimension inch | 12 x 2.2" |
| Tyre dimension mm | 310-57 (outer diameter-width) |
| Wheel rim | PA6+15%GF Injection-molded rim w. 3x2 spokes made from glass fibre reinforced high-grade nylon plastic |
| Ball bearings | 61901-2RS1 / 61802-2RS1 |
| Tyre options | • Schwalbe Big Apple • Continental TourRide |
| Frame & Fork suspension | |
| Frame | 6061-T6 aluminium, made from hydro-formed, TIG-welded and T6 heat-treated aluminium tubes (no plastic parts) |
| Fork suspension | Trionic Climbing Wheel – Patented. Made from extruded 6061-T6 aluminium parts |
| Headset | Trionic system w. 2 ball bearings |
| Brakes | |
| Brakes | Trionic All-Terrain hub brakes |
| Brake levers | Trionic all-aluminium brake levers w. Kraton rubber finger surface |
| Brake functions | Motion & Parking brake |
| Grip bar & Grips | |
| Grip bar | 6061-T6 aluminium (no plastic parts) |
| Grips | Ergon GP1 grips size L 8.5-12 Ergonomic & adjustable (angle) |
| Grip options (upgrade) | • Ergon GP1 size S 6.5-8.5 • Ergon GP1 BioKork size S 6.5-8.5 • Ergon GP1 BioKork size L 8.5-12 |
